Hydraulic Station

The hydraulic station is an important safety and control component of the mine hoist. The hydraulic station and the disc brake and the supporting electric control system combine to become a complete braking system. It provides adjustable pressure oil for the disc brake, so that the hoist can obtain different braking torque; it makes the mine and hoist run, regulate speed and stop normally. According to the supporting equipment and different configuration requirements, there are different configuration schemes such as constant torque hydraulic station, constant deceleration hydraulic station and intelligent gate control constant deceleration hydraulic station.
 Constant torque hydraulic station: working brake, constant torque secondary safety brake in the well, and primary safety brake at the wellhead.
 Constant deceleration hydraulic station: working brake, constant deceleration safety brake in the well, constant torque secondary safety brake in the well, and one level safety brake at the wellhead.
 Intelligent brake control constant deceleration and braking system: working brake, constant deceleration and braking in the well, constant torque secondary braking in the well, first level safety braking at the wellhead, system fault monitoring, self-diagnosis function, consisting of new type disc brake, constant deceleration and braking hydraulic station, constant deceleration and braking electric control cabinet.

Technical Features

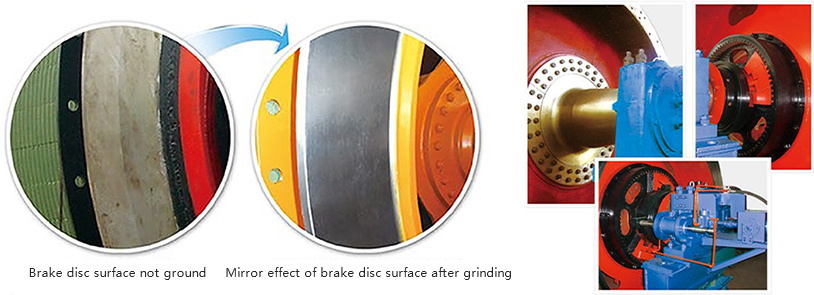

★The company introduces the Ukrainian military technology, processing rolling simple brake disc, using the characteristics of cold plasticity of metal at room temperature, the metal surface of the parts without abrasive grinding process, strengthening and micro-deformation treatment, improve the surface micro-hardness of the parts while generating compressive stress on the surface of the parts, enhance the wear resistance, corrosion resistance and fatigue strength and life of the parts (where the surface roughness of the brake disc reaches 0.8μm, far beyond the National standard 3.2um).
★The spindle is made of high quality carbon steel, forged, normalized and finished for inspection.
The spindle is made of high quality carbon steel, which is forged, normalized and finished and then inspected. The keyless connection is used in any cross section between the two bearings subject to bending moment, so that the stress concentration of the spindle is reduced and the strength is increased, making it more safe and reliable.

★Rope adjusting clutch adopts new type of radial gear block type rope adjusting clutch, which is fast, accurate alignment and flexible operation when adjusting rope.
